2025 Hardware & Technical Catalog

Electric Vehicle Charging Systems

Authorized ASPOWER partnership: complete portfolio from 22 kW AC to 800 kW Ultra-Mega heavy-duty pantograph chargers and 70 kWh self-contained mobile rapid chargers.

Manufacturing & Quality Benchmark: ASPOWER / ascharge

All charging systems are engineered to international IEC 61851 / ISO 15118 standards with full CE and TSE regulatory certifications.

Request Official Catalog
22 kW AC Smart Charging Station
22 kW (3-Faz 400V) Home, Office & Fleet

22 kW AC Smart Charging Station

AS EVC 3022-KRL4-M

Dynamic load balancing, residual current protection, compact aesthetic enclosure.

Connector: Tip 2 (Soketli veya Entegre Kablolu)
Protection: IP54 / IK10
Comms: OCPP 1.6 JSON, Ethernet / Wi-Fi / 4G (Opsiyonel)

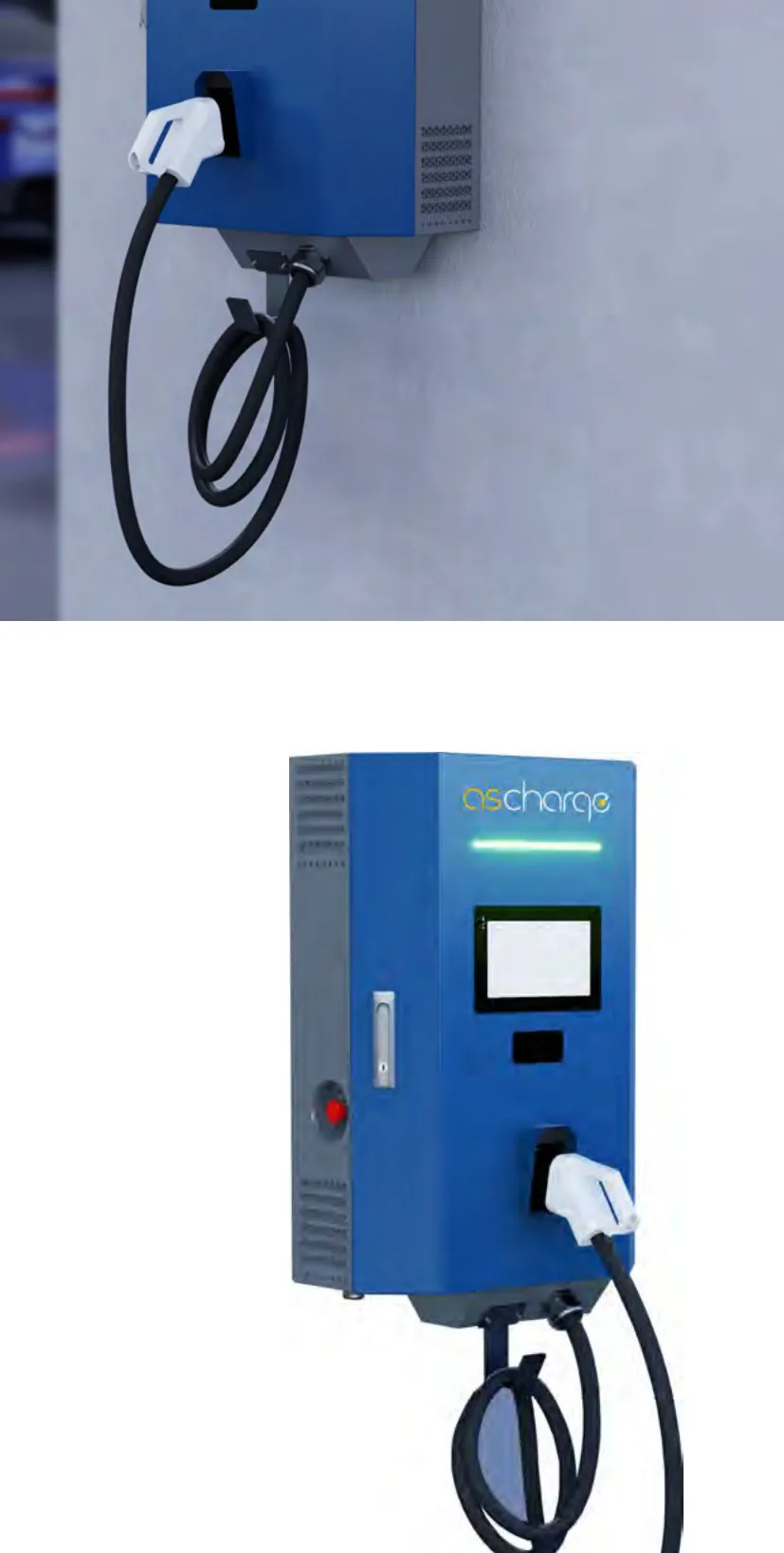

20 kW - 40 kW Compact DC Fast Charger
20 kW / 40 kW Modüler Compact & Wall-Mount DC

20 kW - 40 kW Compact DC Fast Charger

AS EVC 3020 / AS EVC 3040

Cost-effective direct DC fast charging for compact parking, workshops, and commercial venues.

Connector: 1 x CCS2 (veya Opsiyonel CHAdeMO)
Protection: IP54 / IK10, Aşırı Gerilim, Kısa Devre, Yalıtım İzleme
Comms: Ethernet, 4G, OCPP 1.6 J

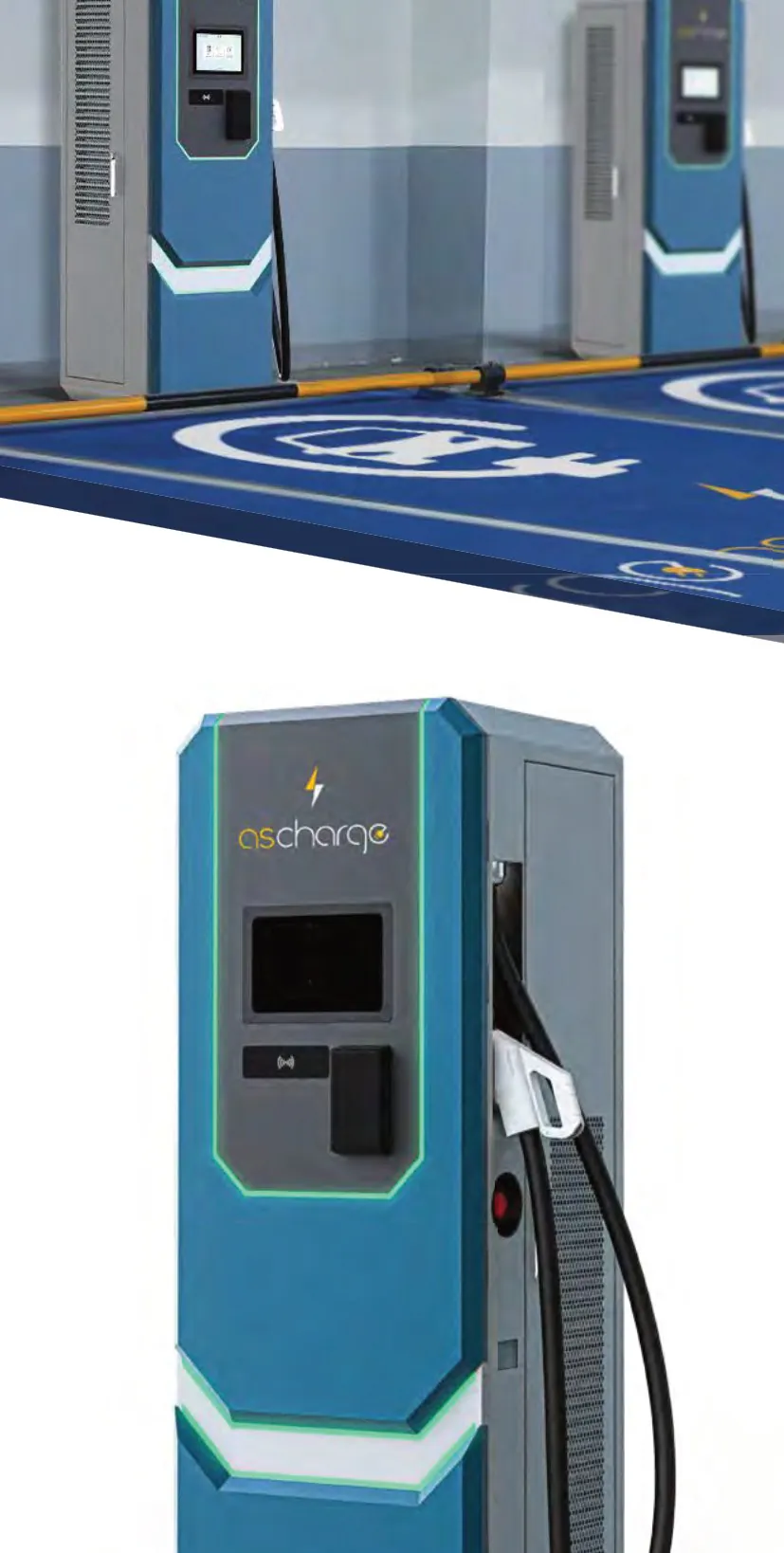

60 kW - 100 kW Commercial DC Fast Charging Station
60 kW / 80 kW / 100 kW Commercial Hub & Retail

60 kW - 100 kW Commercial DC Fast Charging Station

AS EVC 3060 / 3080 / 3100

High-efficiency power converters (96%+), smart thermal air management.

Connector: 1 x CCS2 veya 2 x CCS2 Çıkış
Protection: IP54 / IK10
Comms: OCPP 1.6 J/S, 4G / Ethernet
80 kW DC DUO Dual-Output Fast Charging Station
80 kW (2 x 40 kW Eş Zamanlı) Simultaneous Dual-Vehicle Charging

80 kW DC DUO Dual-Output Fast Charging Station

AS EVC 3080 DUO

Automatically balances power between two vehicles simultaneously to eliminate waiting queues.

Connector: 2 x CCS2 Tabanca
Protection: IP54 / IK10
Comms: OCPP 1.6 J, 4G, Ethernet

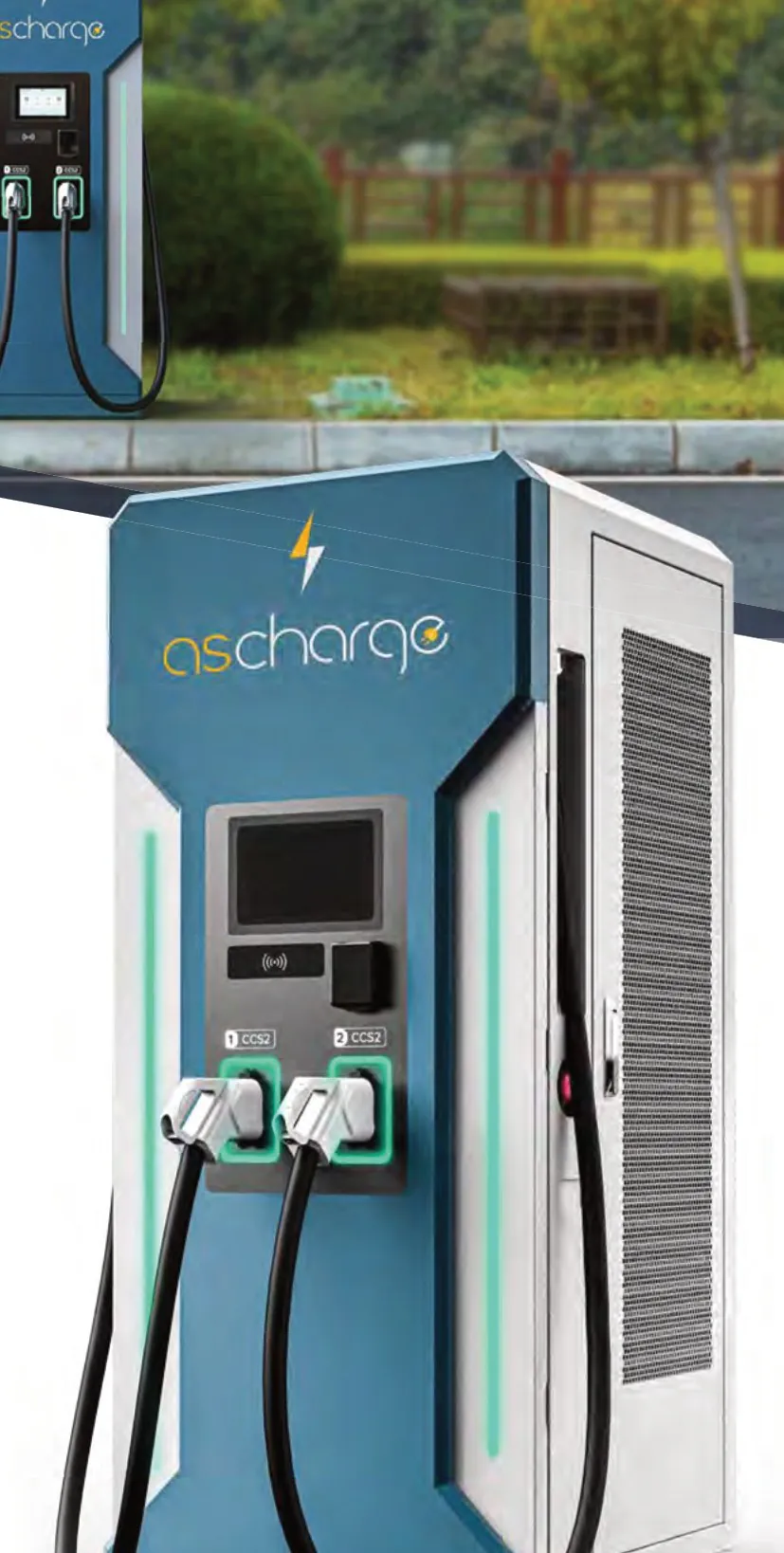

120 kW - 200 kW High-Power DC Fast Charging System
120 kW / 160 kW / 200 kW Highway & Transit Corridor

120 kW - 200 kW High-Power DC Fast Charging System

AS EVC 3120 / 3160 / 3200

Enables 80% charge in 15-20 minutes on modern 800V EV architectures.

Connector: 2 x CCS2 (200A - 250A kablo seçenekleri)
Protection: IP54 / IK10
Comms: OCPP 1.6 JSON, 4G / Wi-Fi / Ethernet
240 kW - 360 kW Ultra-Fast DC Charging System
240 kW - 360 kW Güç Aralığı Ultra-Fast Corridor Charging

240 kW - 360 kW Ultra-Fast DC Charging System

AS EVC 3240 / 3280 / 3320 / 3360

Multi-dispenser routing, dynamic power matrix, commercial fleet and heavy vehicle compatibility.

Connector: 2 x CCS2 (300A - 500A Sıvı Soğutmalı Kablo Opsiyonu)
Protection: IP54 / IK10, C-5M Korozyon Korumalı Dış Gövde
Comms: OCPP 1.6 / 2.0.1 Uyumlu, 4G & Fiber LAN

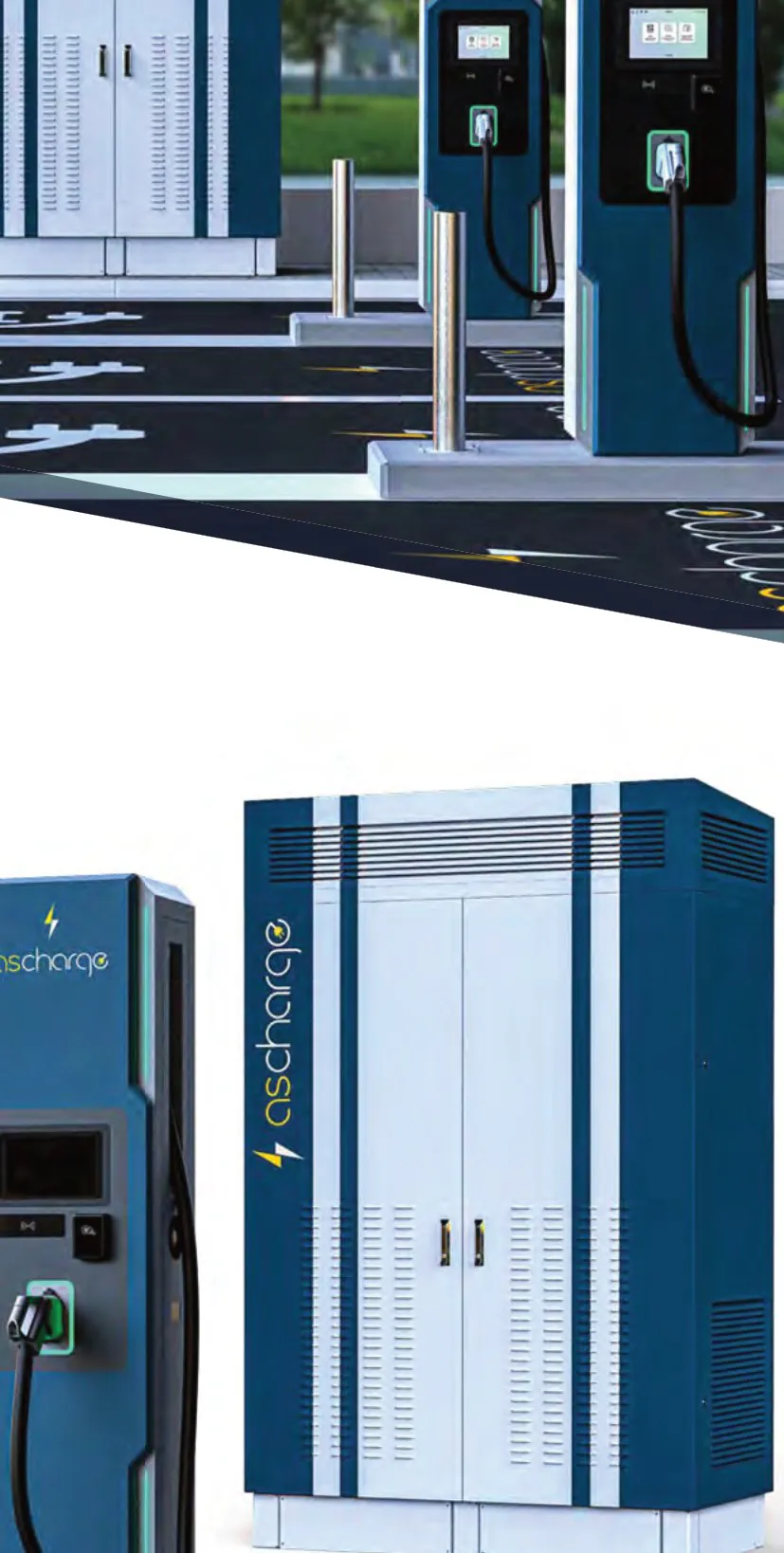

480 kW Mega Fast Charging Station
480 kW Mega Güç Mega Hub & E-Bus Depot

480 kW Mega Fast Charging Station

AS EVC 3480

Dynamic load sharing to multiple vehicles simultaneously, electric bus and truck charging.

Connector: 2 veya daha fazla CCS2 (Sıvı Soğutmalı 500A)
Protection: IP54 / IK10
Comms: OCPP 1.6 J/S, 4G, Ethernet

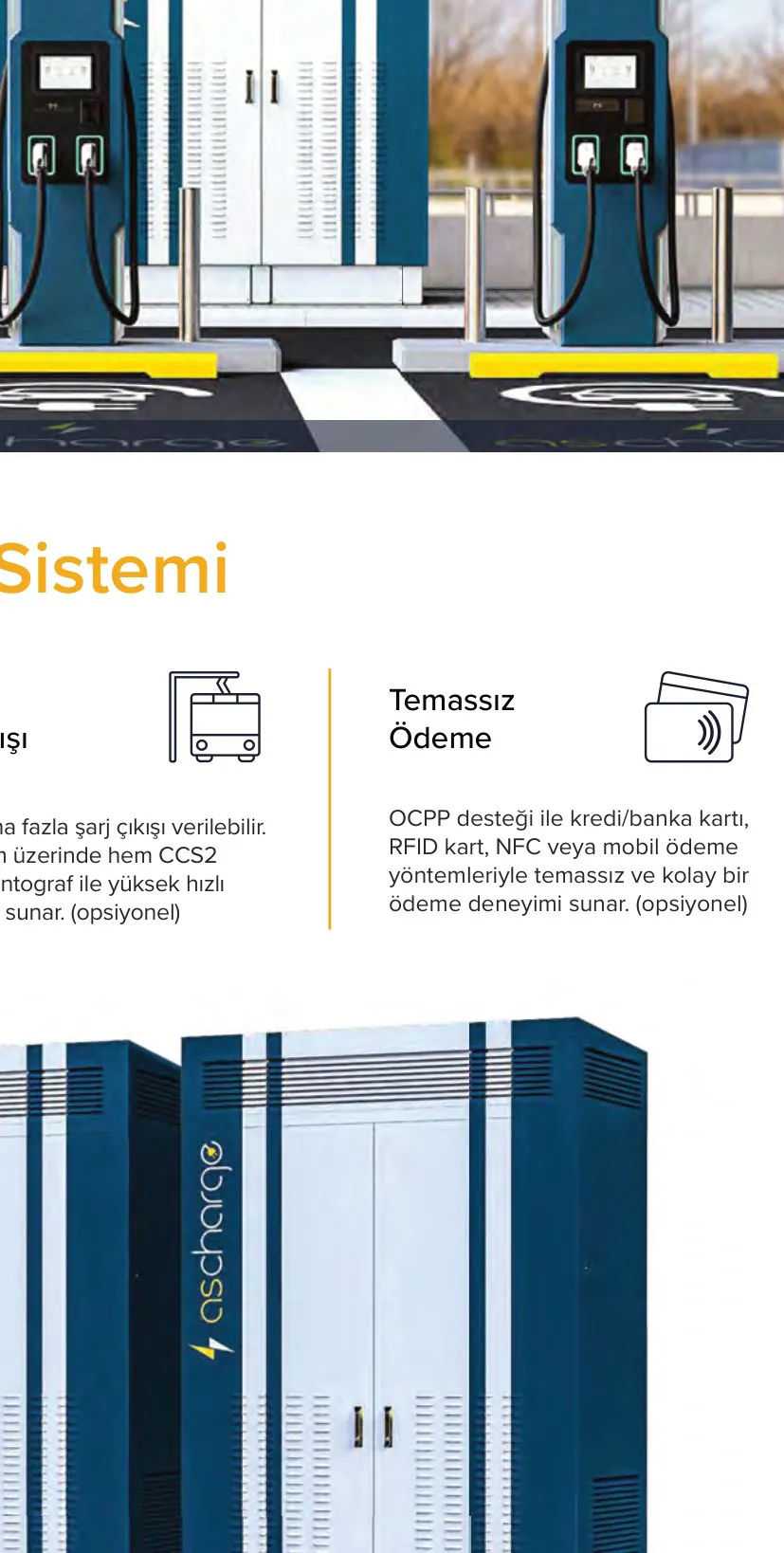

600 kW Mega Heavy-Duty EV Charging System (Verified)
600 kW (2 x 300 kW Eş Zamanlı) 600 kW Mega Power & Pantograph

600 kW Mega Heavy-Duty EV Charging System (Verified)

AS EVC 3600

Continuous ultra-high power for electric bus depots, transit hubs, and heavy logistics yards.

Connector: 2 x CCS2 Sıvı Soğutmalı + Opsiyonel Tavan Tipi Pantograf
Protection: IP54 / IK10
Comms: OCPP 1.6 / 2.0.1, Çift 4G Modülü, Endüstriyel Ethernet
800 kW Ultra-Mega Heavy-Duty Charging System (Verified)
800 kW (2 x 400 kW Eş Zamanlı) 800 kW Peak Power & Pantograph

800 kW Ultra-Mega Heavy-Duty Charging System (Verified)

AS EVC 3800

Flagship highest power tier in the catalog. Ultimate solution for heavy commercial fleets, mining, and highway megahubs.

Connector: Çoklu CCS2 Çıkışları (500A Sıvı Soğutmalı) ve Ters Pantograf Desteği
Protection: IP54 / IK10
Comms: OCPP 1.6 / 2.0.1, Fiber Optik & 4G/5G

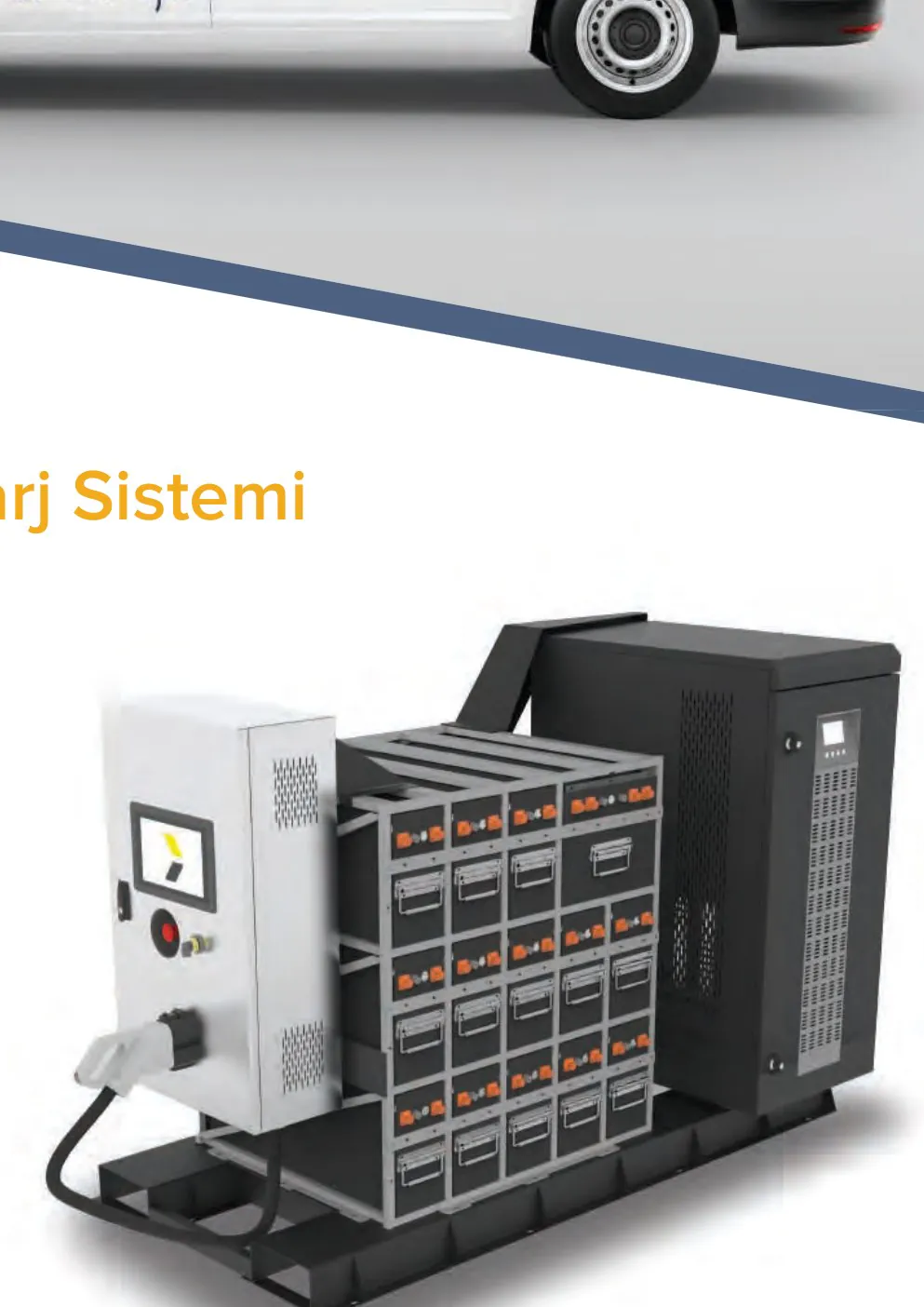

Mobile Fast Charging System (Integrated Battery)
35 kW / 50 kW / 100 kW / 150 kW 70 kWh Integrated Battery & Roadside Rescue

Mobile Fast Charging System (Integrated Battery)

Mobil Hızlı Şarj Sistemi

Self-contained battery-powered mobile rapid charger for stranded EVs, roadside assistance, event venues, and off-grid emergency scenarios.

Connector: 1 x 200A CCS2 veya 1 x 400A CCS2 Çıkışı
Protection: IP54, Şok ve Titreşim Dayanımlı Gövde
Comms: Dahili Telemetri & GPS Konum Takibi

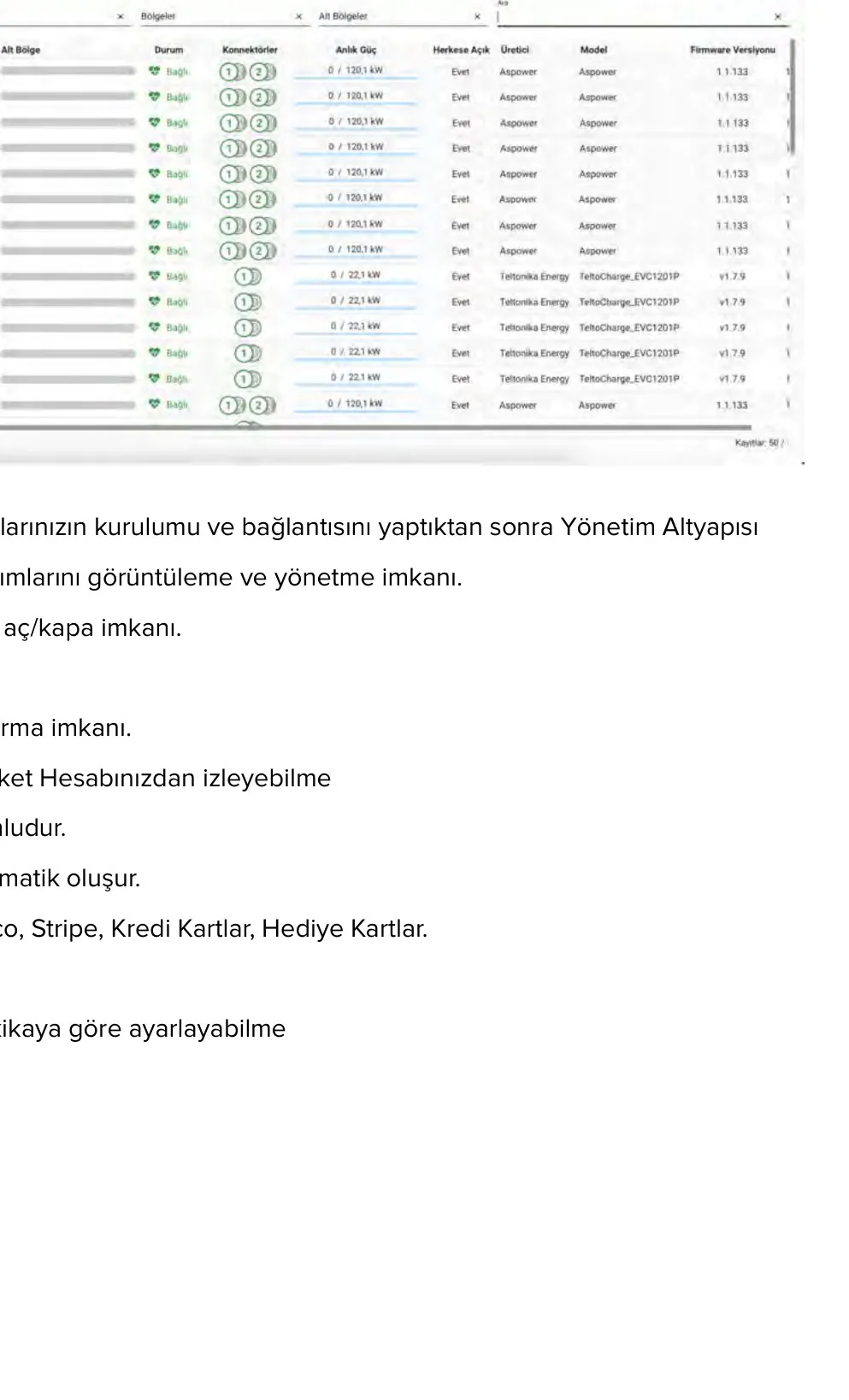

White-Label Driver App & Charge Point Management System (CPMS)
Bulut Tabanlı Yazılım & Mobil Çözüm OCPP 1.6 Compliant & Financial Suite

White-Label Driver App & Charge Point Management System (CPMS)

White-Label Mobil Uygulama & CPMS

Remote station on/off, live reservation, dynamic kWh and minute-based tariffing, direct bank account settlement, automated receipts, fault monitoring and analytics.

Verified Technical Specifications Table

Output power ratings and electrical parameters cross-verified directly against 2025 engineering datasheets.

Model Code Category Rated Power Concurrent Output Split Connectors Protocol Ingress Rating
AS EVC 3022-KRL4-M AC Şarj 22 kW 1 x 22 kW (3-Faz 400V) Tip 2 OCPP 1.6 JSON IP54 / IK10
AS EVC 3020 / 3040 Kompakt DC 20 kW / 40 kW Tek Çıkış (Modüler) CCS2 OCPP 1.6 J IP54 / IK10
AS EVC 3060 - 3100 Ticari DC 60 / 80 / 100 kW 1x veya 2x CCS2 1x/2x CCS2 OCPP 1.6 J / 4G IP54 / IK10
AS EVC 3080 DUO Çift Çıkış DC 80 kW 2 x 40 kW Eş Zamanlı 2 x CCS2 OCPP 1.6 J IP54 / IK10
AS EVC 3120 - 3200 Yüksek Güç DC 120 / 160 / 200 kW 2 x 100 kW Eş Zamanlı 2 x CCS2 (250A) OCPP 1.6 J IP54 / IK10
AS EVC 3240 - 3360 Ultra Hızlı DC 240 - 360 kW 2 x 180 kW Eş Zamanlı 2 x CCS2 (300A-500A) OCPP 1.6 / 2.0.1 IP54 / IK10
AS EVC 3480 Mega DC 480 kW Dinamik Çoklu Çıkış Çoklu CCS2 OCPP 1.6 J/S IP54 / IK10
AS EVC 3600 (Doğrulandı) Mega Ağır Vasıta 600 kW 2 x 300 kW Eş Zamanlı CCS2 + Pantograf OCPP 1.6 / 2.0.1 IP54 / IK10
AS EVC 3800 (Doğrulandı) Ultra Mega Şarj 800 kW 2 x 400 kW Eş Zamanlı Sıvı Soğutmalı CCS2 + Pantograf OCPP 1.6 / 2.0.1 IP54 / IK10
Mobil Hızlı Şarj Sistemi Bataryalı Mobil 35 - 150 kW DC 70 kWh Dahili Batarya 1 x 200A / 400A CCS2 GPS & Telemetri IP54 / Mobil Şasi
